How the Meat Bot works.
A 2-axis robot, a patent-pending multi-channel nozzle, and software that remembers every recipe.
Three steps from mix to tray.
You prep and load
Grind and season your meat your way, then load it into the sausage stuffer that feeds the Meat Bot. Your recipe, your protein — the Meat Bot handles the forming.
The robot deposits
Select a saved program and run it. The 2-axis gantry moves while the multi-channel nozzle extrudes uniform rows — strips, sticks, or shapes — directly onto your trays. Spacing, length, and timing are controlled in software.
You dry and finish
Move the trays to your existing dehydrator or smokehouse. Because every strip is the same thickness, everything dries evenly — no thin strips burning while fat ones stay wet.
The engineering.

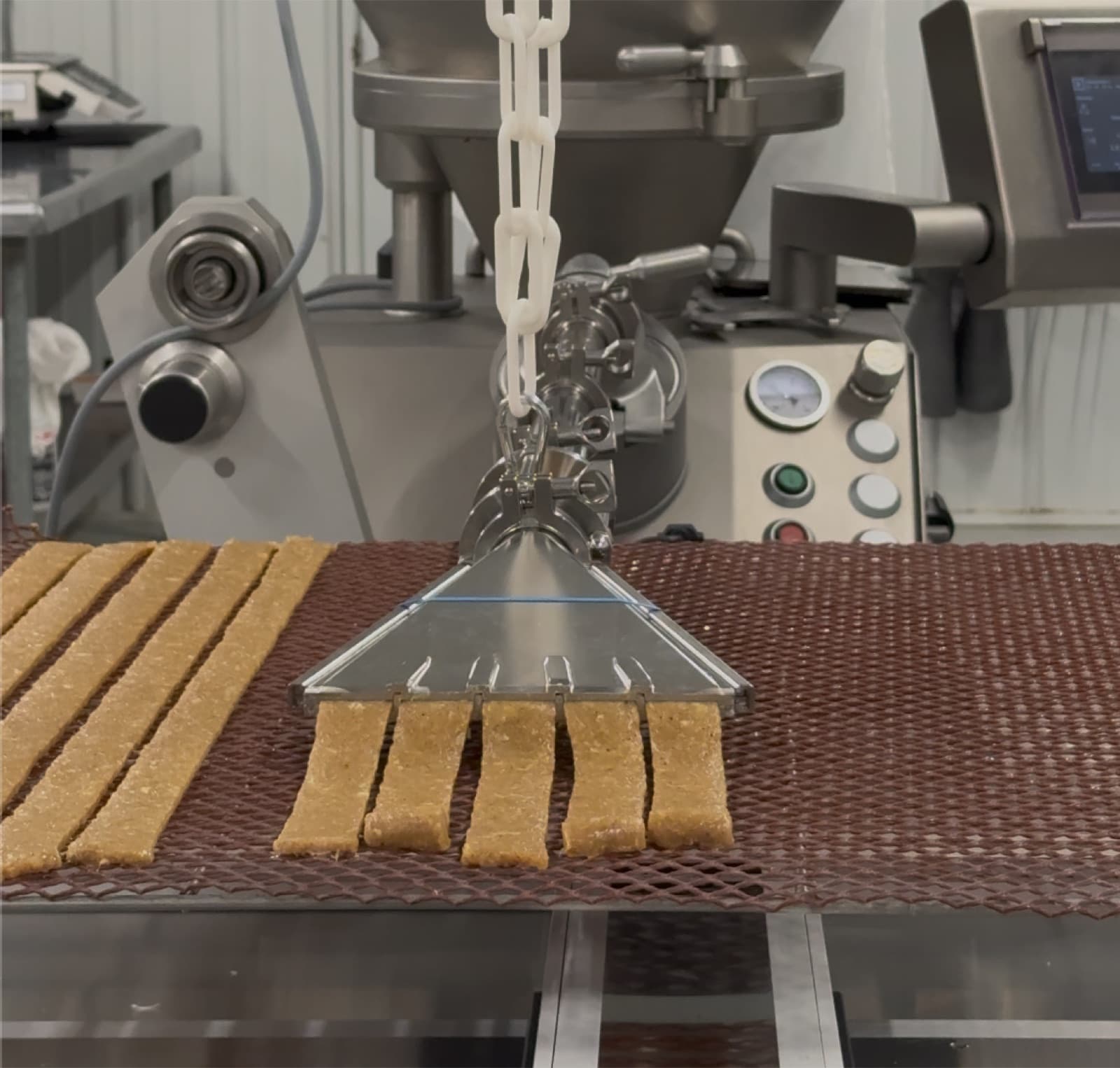

Multi-channel deposition head
Patent-pending (USPTO #64/013,275). Lays multiple strips at once with engineered airflow gaps for even drying. 3-strip and 5-strip available now; covers any strip count.
Food-grade build, Tri-Clamp ready
Stainless steel with a food-grade aluminum top plate to cut weight. Sanitary 1.5″ Tri-Clamp fittings let you add off-the-shelf extenders, elbows, and adapters — then disassemble for cleaning in seconds. Add the optional wash-down package — IP67-rated actuators and servo motors on the deposition section — and hose the machine down when the run is done.
Cloud-managed control
Programs, scheduling, and analytics live in the Meat Bot cloud. Updates arrive over the air. Enterprise tier lets operators design new shapes with no code.
Stuffer-synced
Coordinates deposition with your stuffer’s output to cut forming time; works with Weston, LEM, Vemag, and more.
Continuous, low-waste deposition
Just 3–5 lb loss per run — none of the waste-heavy water-wheel rollover losses — and fast to clean and sanitize for any batch size.
Portable & custom
On wheels: 15-minute setup, 15-minute teardown, no dedicated floor space. Each unit is custom-built to your floor plan.
See it run for yourself.
Get in touch with your questions, or book a live demo call.
